Single Water Softeners with Timered Valves

Single Water Softeners with a timered valve are programmed to regenerate at a specific time of day.  They are usually scheduled to regenerate at 2am, when the demands for soft water are expected to be very low.  These can be set to regenerate every day, every two to three days, or on certain days of the week.

Please Select a Product Below

AMI Water Softeners Product Specifications

Water Softener Model No. Volume of Media (Cu. Ft.) Flow Rate (GPM)* Backwash Flow (GPM) Fleck Valve Head Resin Tank Size (Dia"xH") Brine Tank Size (Dia"xH") In/Out Connections (In.) Approx. Ship Weight
5GPM per Sq.Ft. 15 GPM per Sq.Ft.
W-S744SS-*** 0.4 1 4 1.5 5600 07 × 44 18 x 33 3/4 80
W-S844SS-*** 0.5 2 5 2 5600 08 × 44 18 x 33 3/4 85
W-S940SS-*** 0.7 2 6 2 5600 09 × 54 18 x 40 3/4 90
W-S1040SS-*** 1.0 2 7 3 5600 10 × 40 18 x 40 3/4 100
W-S1054SS-*** 1.5 2 7 3 5600 10 × 54 18 x 40 3/4 125
W-S1252SS-*** 2.0 4 12 4 2510 12 × 52 18 x 40 1 165
W-S1354SS-*** 2.5 4 14 5 2510 13 × 54 18 x 40 1 215
W-S1465SS-*** 3.0 5 16 6 2510 14 × 65 24 x 41 1 245
W-S1665SS-*** 4.0 7 21 7 2510 16 × 65 24 x 41 1 285
W-S2162SS-*** 8.0 13 36 12 2850 21 × 62 30 x 48 1.5 515
W-S2472SS-*** 10.0 15 47 15 2850 24 × 72 39 x 48 1.5 735
W-S3072SS-*** 15.0 24 74 25 3150 30 × 72 39 x 48 2 985
W-S3672SS-*** 20.0 35 106 35 3150 36 × 72 39 x 60 2 1385
W-S4272SS-*** 30.0 48 144 48 3900 42 × 72 42 x 60 3 2035
W-S4872SS-*** 40.0 60 188 60 3900 48 × 72 60 x 60 3 2735

*5 gpm per sq.ft. of water softener media is the best design condition for filtration.  For relatively clean water, you may go up to design criteria of 15 gpm per sq. ft.  Backwash flow rate for  water softener is based on 25 psi pressure drop.
***Please add the appropriate voltage code to the end of the water softener model number when ordering.  Example:  W-S940SS-116

110v/60Hz = 116

220v/60Hz = 216

220v/50Hz = 215



With Stainless Steel Jacket With No Jacket

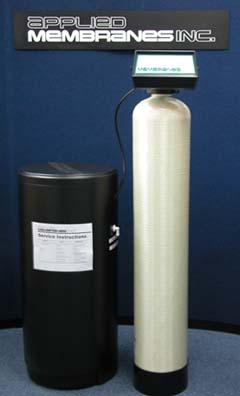

Water Softeners - Single Softeners with Timered Control Valves - Shown with SS Jacket
With Optional SS Jacket		 Water Softeners - Single Softeners with Timered Control Valves

Stainless Steel Jacket Adder for Water Softeners

If you would like to order a water softener with a Stainless Steel Jacket, please order the appropriate option from the below table along with your water softener model number.

SS Jacket Option # For Water Softener Resin Tank Size:  (Dia. x Height)
A950-940 9" × 40"
A950-1040 10" × 40"
A950-1054 10" × 54"
A950-1252 12" × 52"
SS Jacket Option # For Water Softener Resin Tank Size:  (Dia. x Height)
A950-1354 13" × 54"
A950-1465 14" × 65"
A950-1665 16" × 65"

Other sizes are not available with SS Jacket Option
